Ultra-Compact KD*P Pockels cells

25mm Diameter Housing
Ideal for Q-switching & Pulse-Picking

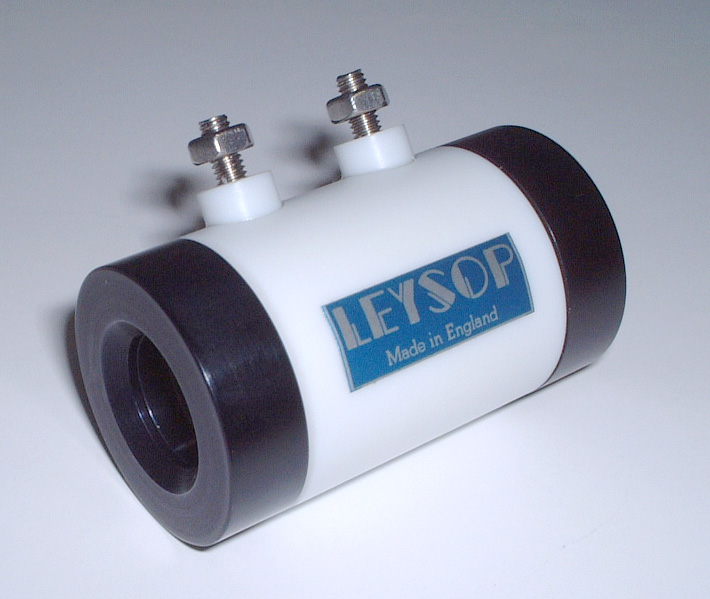

Compact 25mm diameter KD*P Pockels cell


The compact KD*P Pockels cell models EM508M-EM512M have for many years satisfied the needs of our customers for smaller (compared to the EM500 range) Pockels cells for OEM applications. With size constraints becoming ever tighter, we have developed a smaller model still, the EM510C 10mm aperture KD*P Pockels cell. This device is intended predominantly for quarter wave Q-switching applications, although of course it could find other uses anywhere a more modestly sized longitudinal field KD*P based Pockels cell is desired.

What then are the differences between this cell and the EM500M series? Obviously the first difference is size. The EM500M cells are in a (sort of de-facto industry standard) 35mm diameter package. The miniature EM510C is in a 25mm diameter package instead. Also, although it is technically possible to provide the cell in either fluid filled or dry construction, we do not believe that the smaller package provides room for a sufficiently sized air bubble to allow for adequate thermal expansion under the sort of operating conditions in which an OEM laser Q-switch might be found. We therefore only offer this normally as a dry cell with anti-reflection coated crystal and windows but for special circumstances we can supply fluid filled devices. This brings us to the final difference which is that we are not able to stock a wide range of windows for alternative operating wavelengths in the particular size used for this cell. It is for this reason that the EM510C is offered only as standard for the wavelength range 1030-1064nm which is the range over which the stock windows perform optimally. Other wavelengths will be available to special order, but please note that costs will be higher for this option.


Parameter EM510C
Aperture: 10mm
Wavelength Range: 1030-1064nm
Halfwave Voltage @ 1.06µm: Approximately 6.2 kV static, 7.5kV dynamic
Maximum Voltage: 8kV
Optical Rise Time: < 1.0 ns
Contrast Ratio @ 1.06µm: > 1000:1
Capacitance Unterminated: < ~5 pF
Damage Threshold: 600 MW/cm2
Insertion loss with AR coatings: <2%
Physical Dimensions: 25mm ∅, 43mm long
